Description

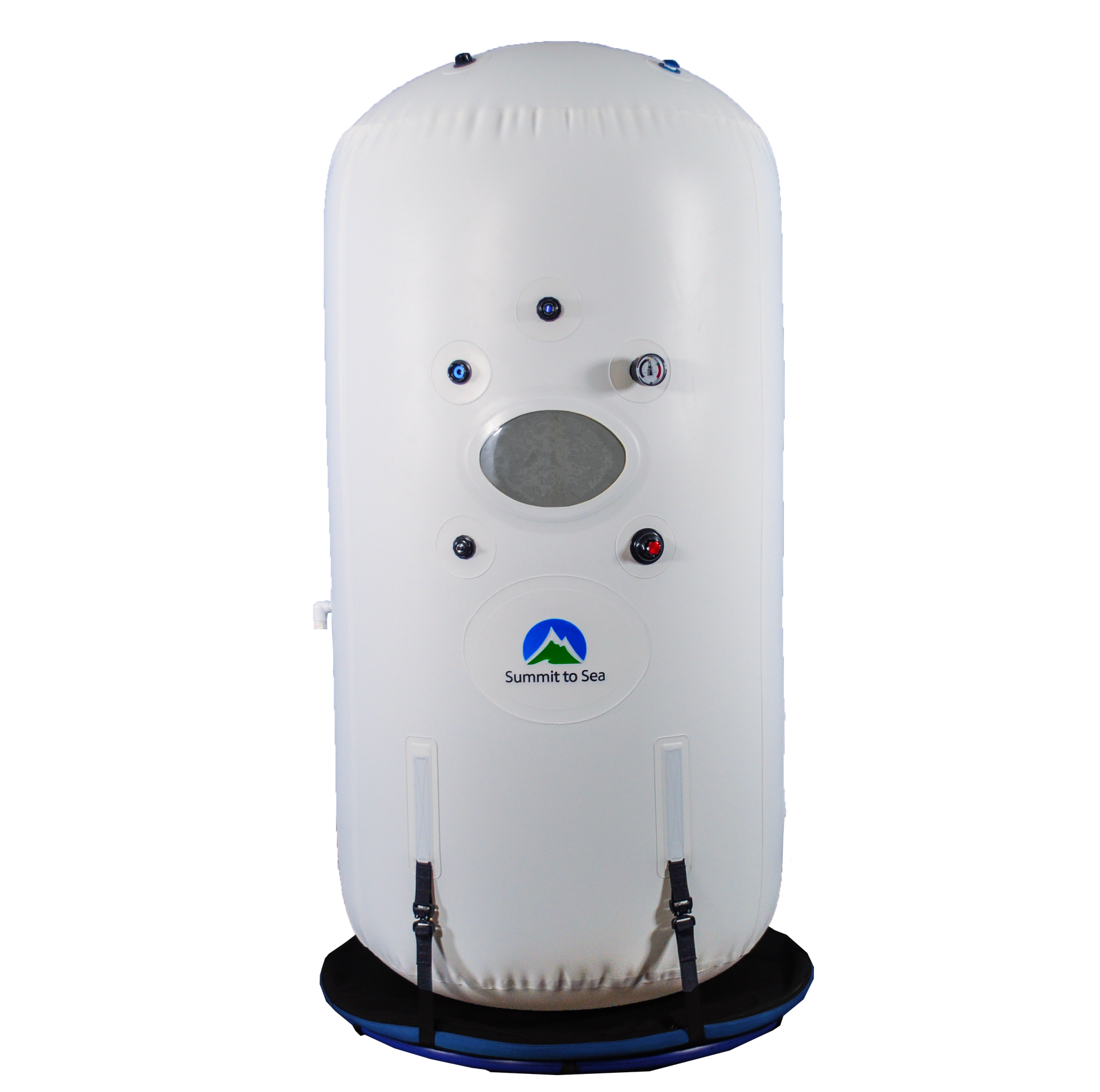

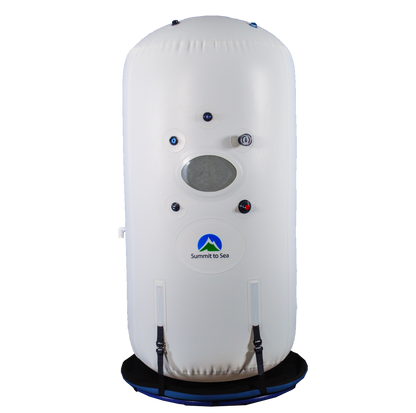

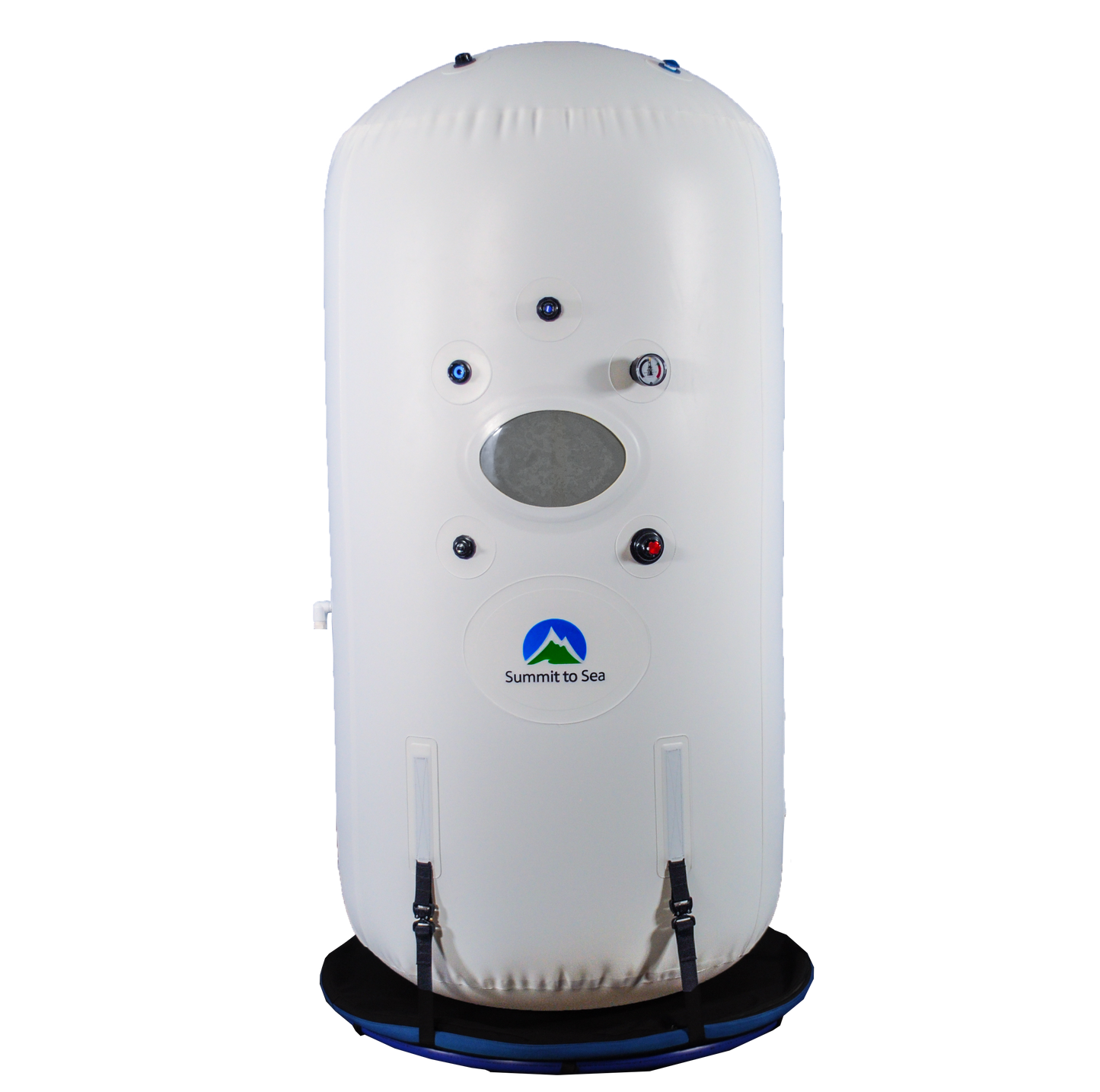

Most hyperbaric chambers make you lie down. The Dive Vertical was built for buyers who refused to accept that. It is the first vertical portable mild hyperbaric chamber on the market and it changed what home hyperbaric therapy looks like.
At 40 inches in diameter and 85 inches tall, the Dive Vertical is designed to accommodate a comfortable chair inside, so you sit upright like a human being for the entire session.
A 5-foot zipper opening, internal frame for faster inflation, and integrated stabilizer for greater stability make this chamber as practical as it is groundbreaking.
This is a patented design US Patent #9,622,931 built by Summit to Sea, an FDA-cleared manufacturer with over 30 years of experience making hyperbaric chambers in the USA.
Every Dive Vertical ships with a 2-year warranty covering every component, because a patent-protected innovation deserves patent-level backing.
Features
-
First Vertical Portable Chamber on the Market — A genuinely unique design that lets you sit upright in your own chair throughout the entire session — no lying down required.
-
Patent-Protected Design — Engineered and protected under US Patent #9,622,931, this is not a copied design — it is the original.
-
Dual Redundant Compressors — Two independent compressors with separate hoses provide safety redundancy so your session never depends on a single point of failure.
-
Dual Fill Valves — Designed for cool airflow throughout the chamber, keeping the internal environment comfortable during extended sessions.
-
Double-Sided Full-Length Zippers — Entry and exit can be operated from both inside and outside the chamber, giving you complete independence at all times.
-

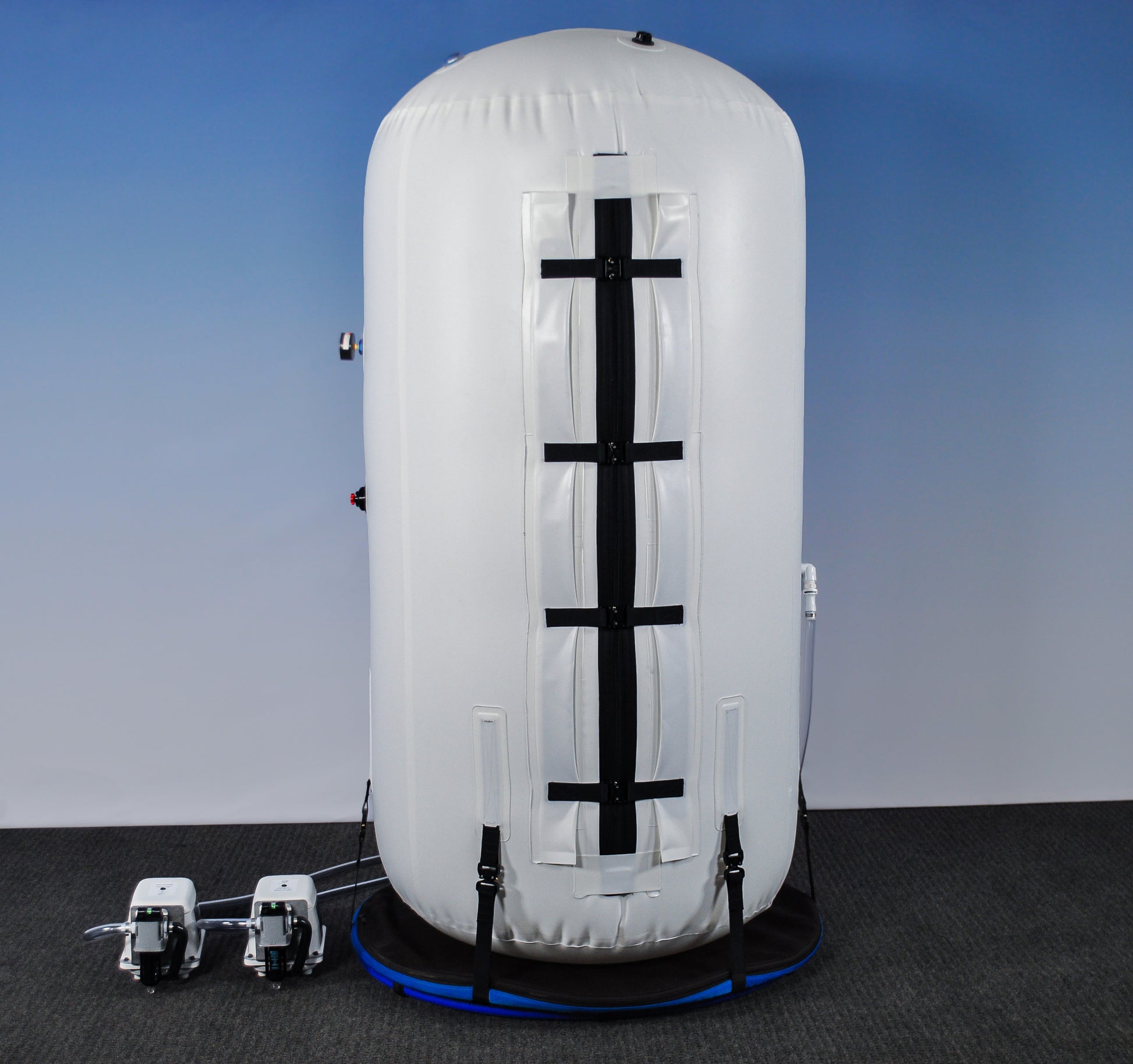

5-Foot Zipper Opening — A wider entry than standard chambers makes getting in and out significantly easier — especially when adding a chair inside.
-
Internal Frame — Speeds up inflation so the chamber reaches full structure faster and holds it more consistently session after session.
-
Integrated Stabilizer — Engineered directly into the chamber base for greater stability in the vertical upright position.
-
Antibacterial Carpet — Built into the chamber floor for comfort underfoot and hygiene between sessions.
-
Belt & Buckle Closure System — Reinforces the zipper under pressure, extending the life of the chamber while maintaining an airtight seal.
-
Failed Circuit Alarm — Built-in alert notifies you immediately if a circuit failure occurs during your session.
-
Two Air Release Valves + One Backup Safety Valve — Multi-layer pressure management for safe, controlled operation every time.
-
Standard Outlet Compatible — Operates on a standard 120V / 15 AMP household outlet — no special electrical requirements.
-
Remote Switch Included — Allows convenient control without interrupting your session.
Specifications
| Specification |
Detail |
| Price |
From $13,995 |
| Pressure |
4.4 PSI / 1.3 ATA |
| Diameter |
40 inches |
| Height |
85 inches |
| Zipper Opening |
5 feet |
| Compressors |
2 redundant, separate hoses |
| Power Requirements |
120V / 15 AMP standard outlet |
| Patent |
US Patent #9,622,931 |
| FDA Clearance |
510K #072757
|
| Origin |
Made in the USA |
| Prescription Required |
Yes |
Warranty
All Summit to Sea hyperbaric chambers include a 2-year standard warranty from the date of delivery, covering all components — zipper, viewing windows, seams, valves, and hoses. Warranty covers both parts and labor. Summit to Sea will repair or replace the item at their sole discretion. Damage from misuse or unauthorized modifications is not covered. Return shipping for warranty service is the customer's responsibility.
Extended Warranty Options — available for purchase at any time while the original 2-year warranty remains active, covering all the same components:
| Coverage |
Price |
| 1-Year Extended |
$1,400 |
| 2-Year Extended |
$2,100 |
| 3-Year Extended |
$2,800 |
Shipping
Orders ship directly from Summit to Sea to your delivery address. Shipping cost: $350 (contiguous 48 U.S. states). Tracking information is provided once your order ships.
Customers in Hawaii, Alaska, or outside the United States require a custom shipping quote before ordering — contact us prior to purchase.
⚕️ Prescription Required — This is an FDA-cleared medical device. A valid prescription from a licensed healthcare provider is required prior to purchase.
Optional Professional Installation: $600 — A third-party installer will contact you directly to schedule setup at your convenience. Available at checkout.
Return Policy
You have 15 days from the date of delivery to return your chamber for a refund. To initiate a return, contact us directly.
- Refund covers the purchase price minus original shipping charges
- Chamber must be returned in its original condition as delivered
- Chambers returned damaged, dirty, or missing components are subject to a restoration charge
- Return shipping to Summit to Sea is the customer's responsibility
Manuals & Specs
📄 Dive Vertical Owner's Manual 📄 Dive Vertical Warranty Card
Full instruction videos and setup guides
For Technical Support —Contact Us
